K-GENERAL
K-GENERAL
K-GENERAL is an endmill that can perform various types of processing depending on the processing shape.

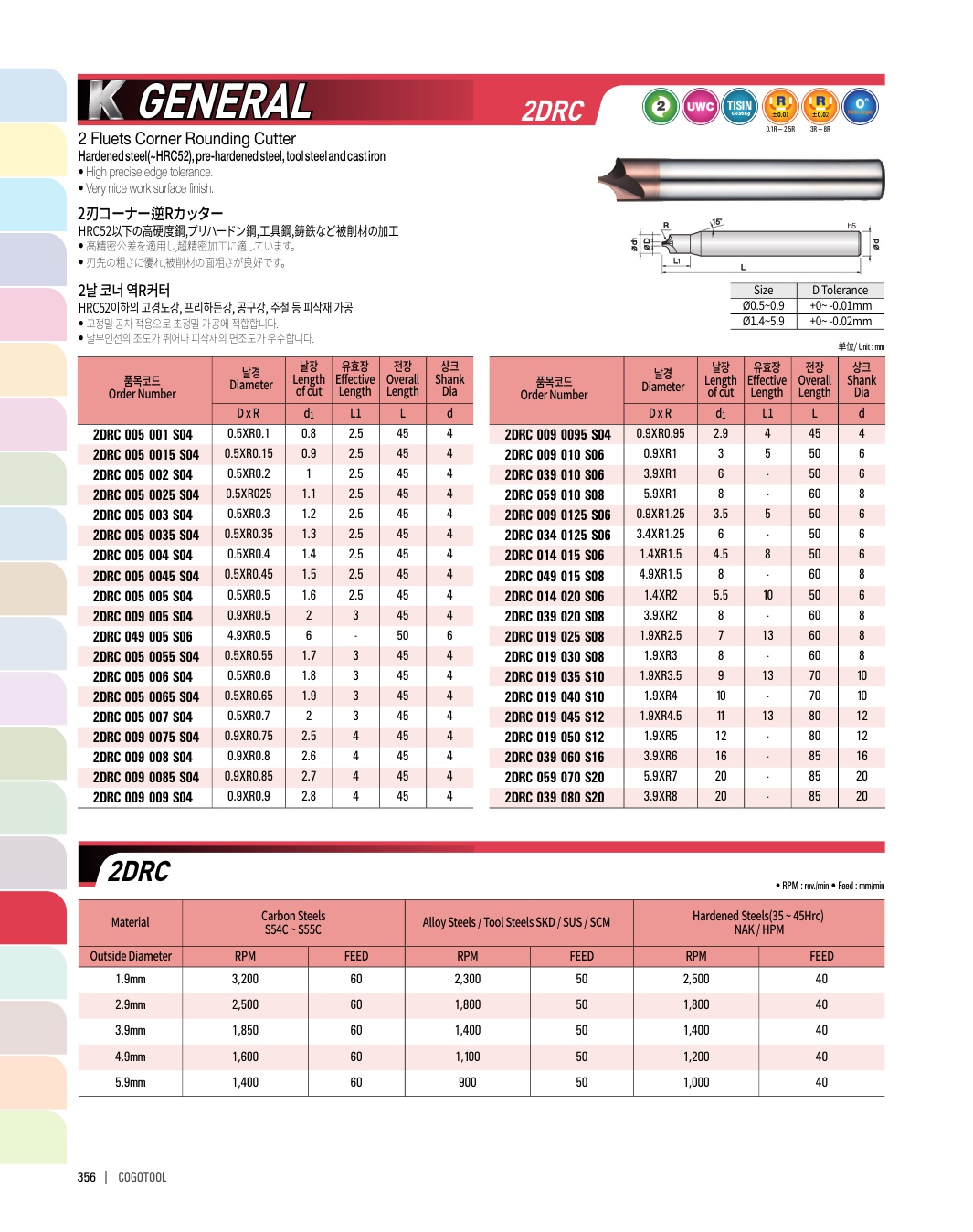

2DRC
Corner Rounding Cutter
Carbon Steels, Alloy Steels, Prehardened Steels, Heat treated steel, SUS, Stainless, Copper
2 Fluets Corner Rounding Cutter
- - Hardened steel(~HRC52), pre-hardened steel, tool steel and cast iron
- - High precise edge tolerance.
- - Very nice work surface finish.

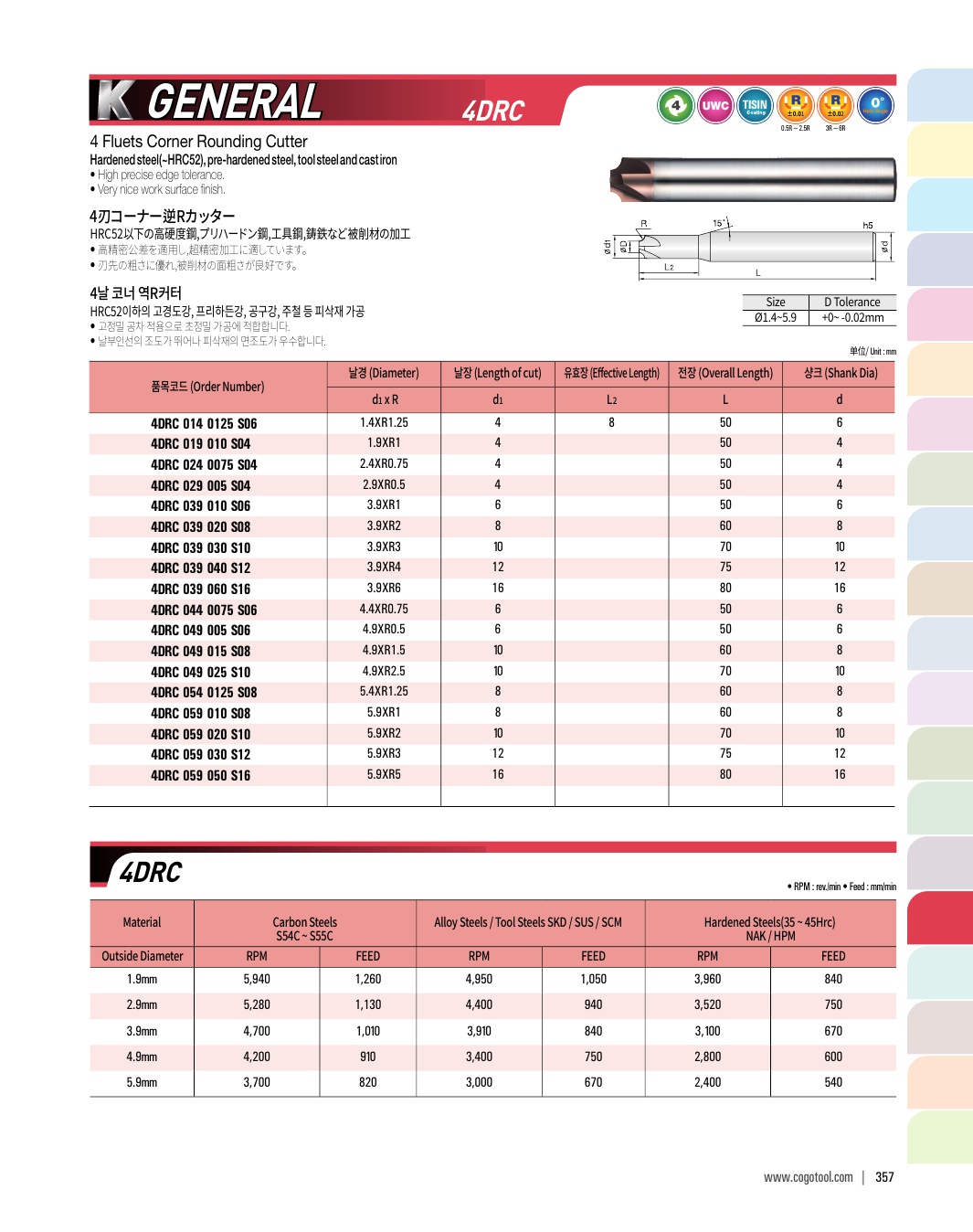

4DRC
Corner Rounding Cutter
Carbon Steels, Alloy Steels, Prehardened Steels, Heat treated steel, SUS, Stainless, Copper
4 Fluets Corner Rounding Cutter
- - Hardened steel(~HRC52), pre-hardened steel, tool steel and cast iron
- - High precise edge tolerance.
- - Very nice work surface finish.

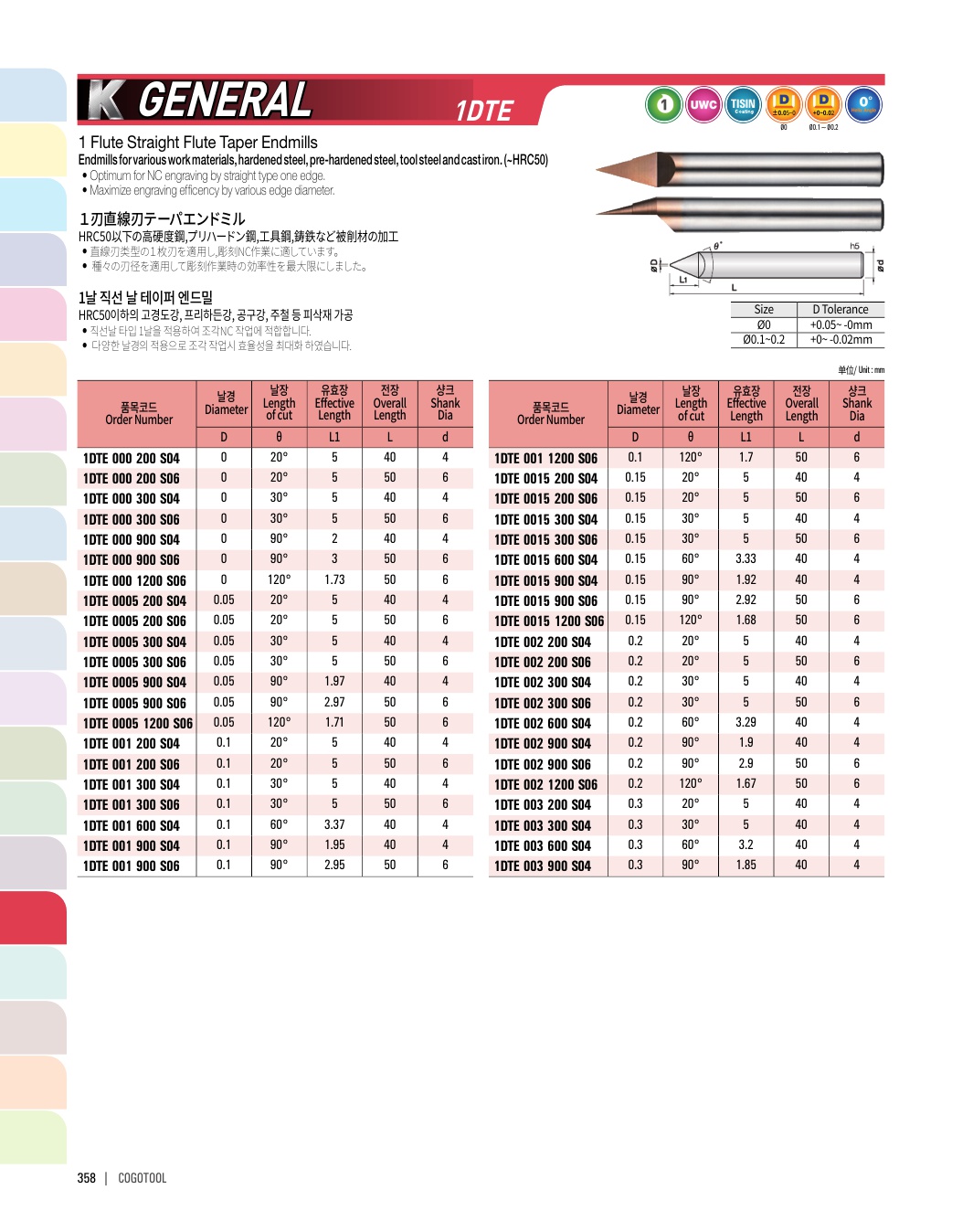

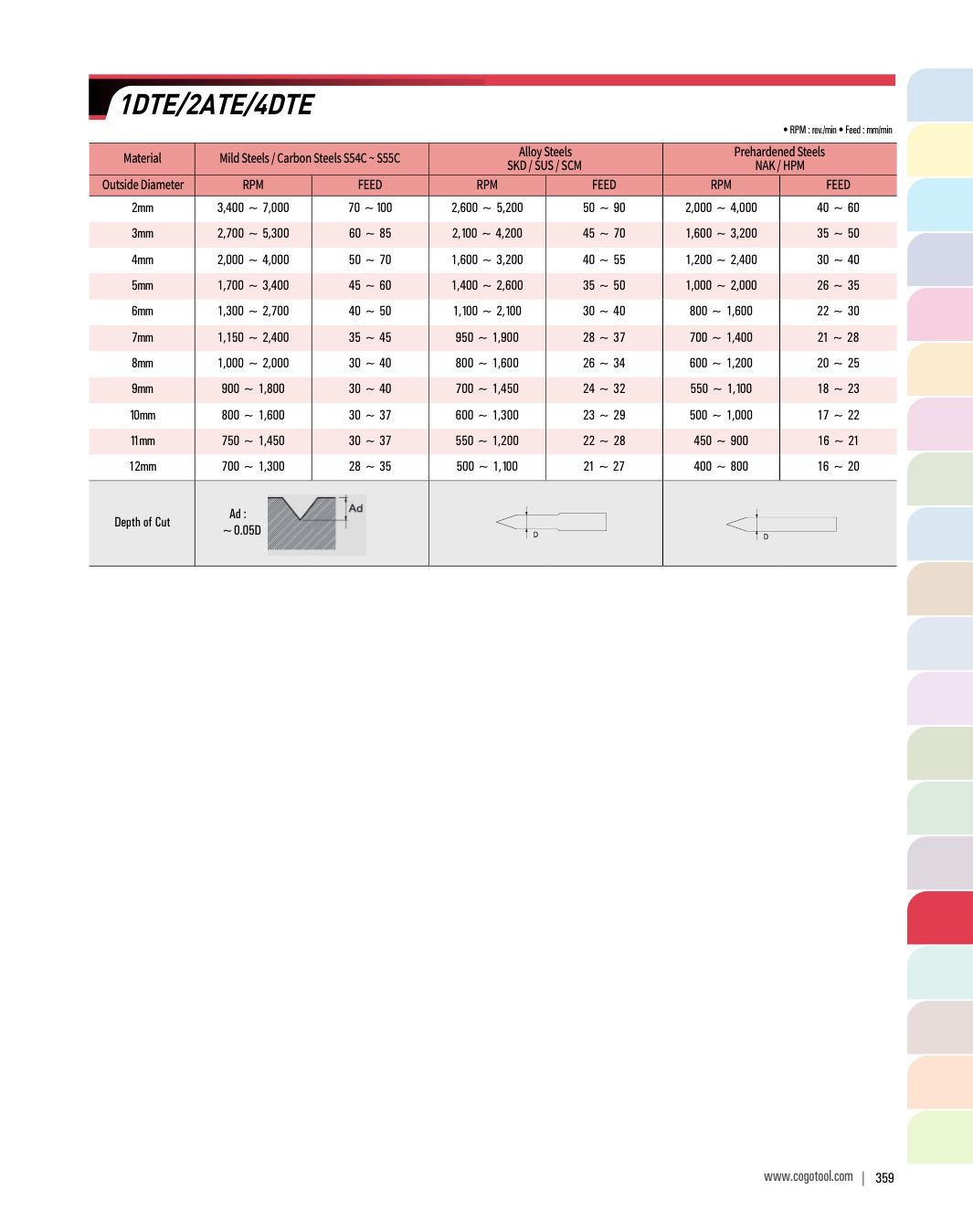

1DTE
Straight Flute Taper Endmills
Carbon Steels, Alloy Steels, Prehardened Steels, SUS, Stainless, Copper
1 Flute Straight Flute Taper Endmills
- - Endmills for various work materials, hardened steel, pre-hardened steel, tool steel and cast iron. (~HRC50)
- - Optimum for NC engraving by straight type one edge.
- - Maximize engraving efficency by various edge diameter.

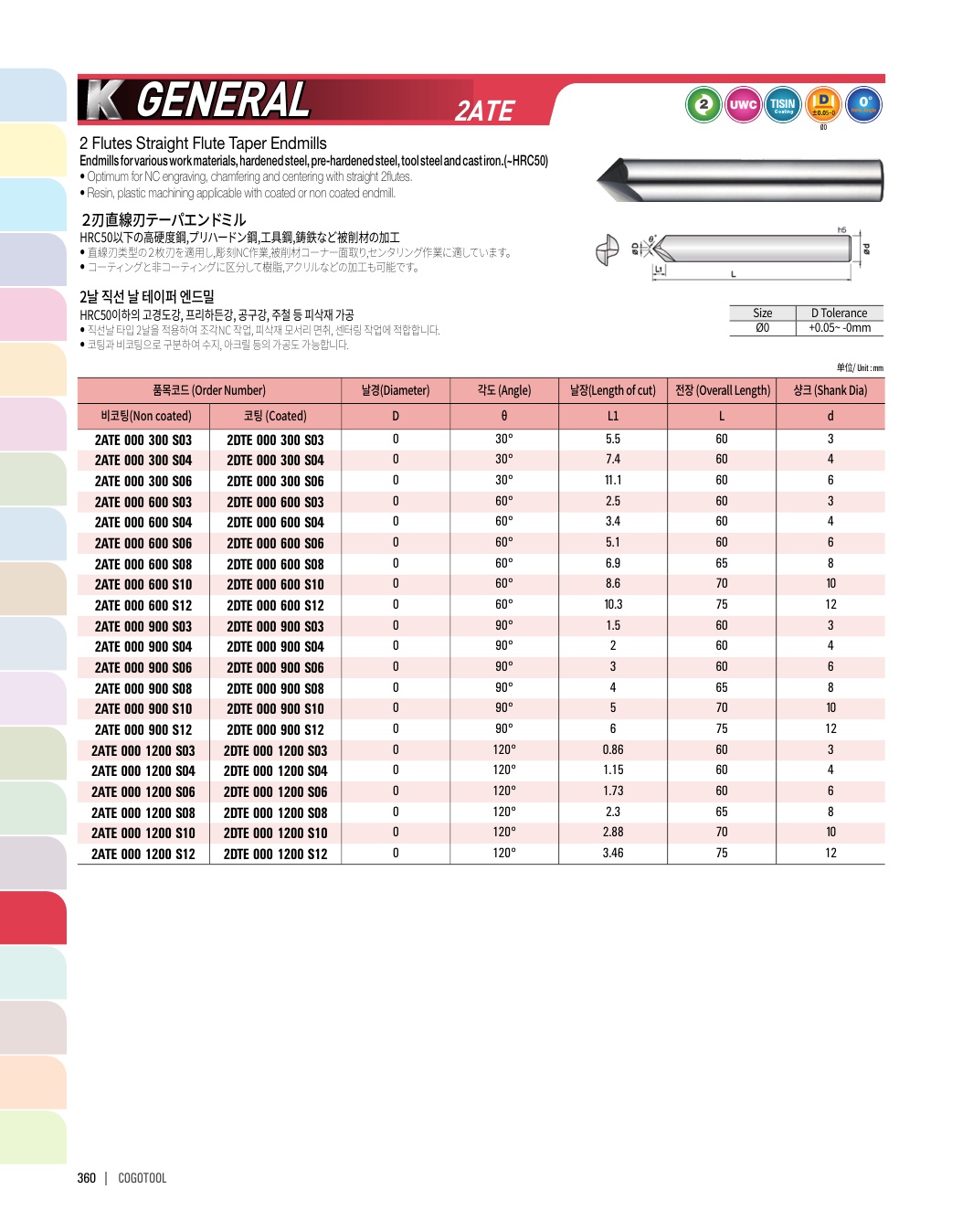

2ATE
Straight Flute Taper Endmills
Carbon Steels, Alloy Steels, Prehardened Steels, Heat treated steel, SUS, Stainless, Copper
2 Flutes Straight Flute Taper Endmills
- - Endmills for various work materials, hardened steel, pre-hardened steel, tool steel and cast iron.(~HRC50)
- - Optimum for NC engraving, chamfering and centering with straight 2flutes.
- - Resin, plastic machining applicable with coated or non coated endmill.

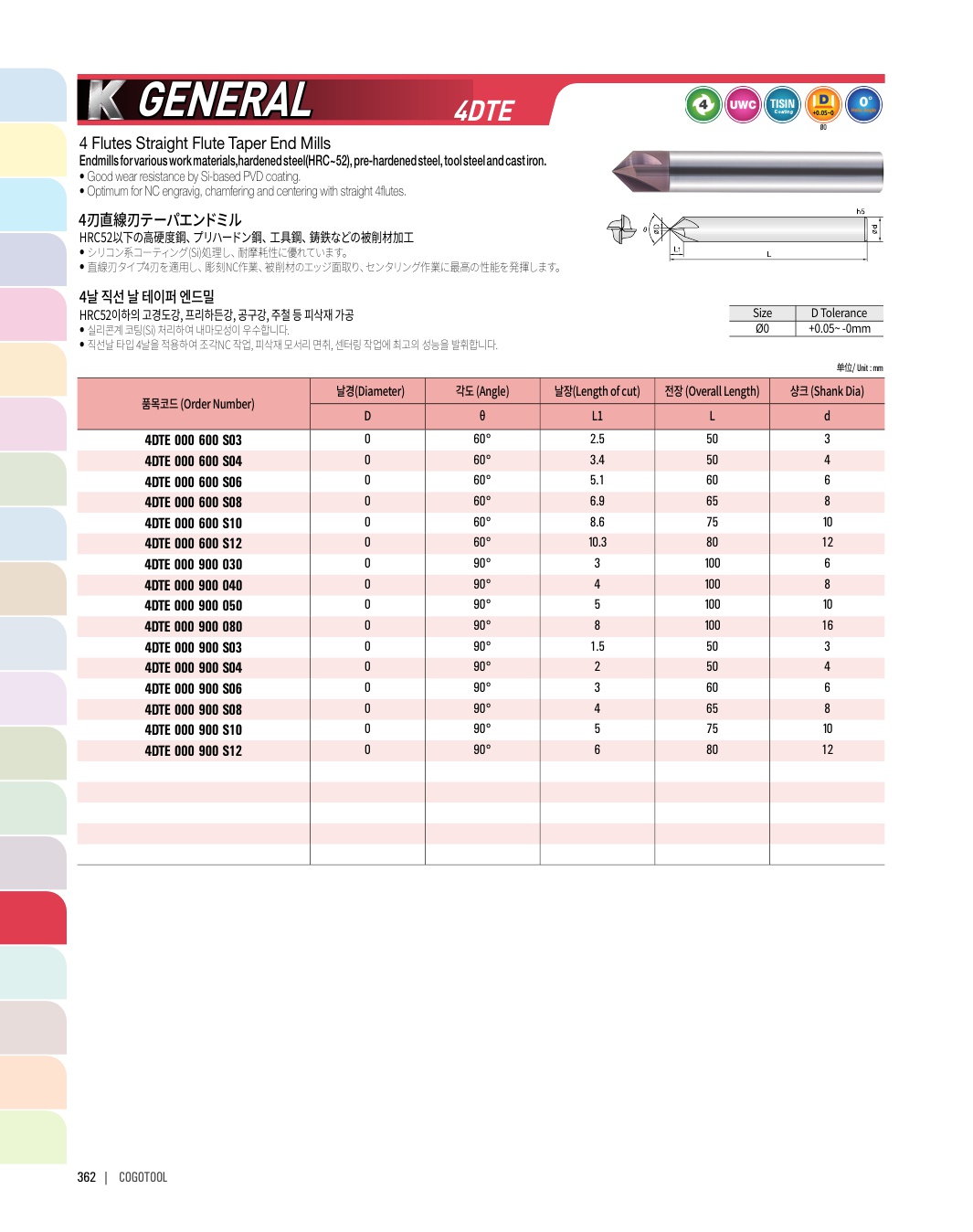

4DTE
Straight Flute Taper Endmills
Carbon Steels, Alloy Steels, Prehardened Steels, Heat treated steel, Titanum, Copper, Graphite
4 Flutes Straight Flute Taper End Mills
- - Endmills for various work materials,hardened steel(HRC~52), pre-hardened steel, tool steel and cast iron.
- - Good wear resistance by Si-based PVD coating.
- - Optimum for NC engravig, chamfering and centering with straight 4flutes.

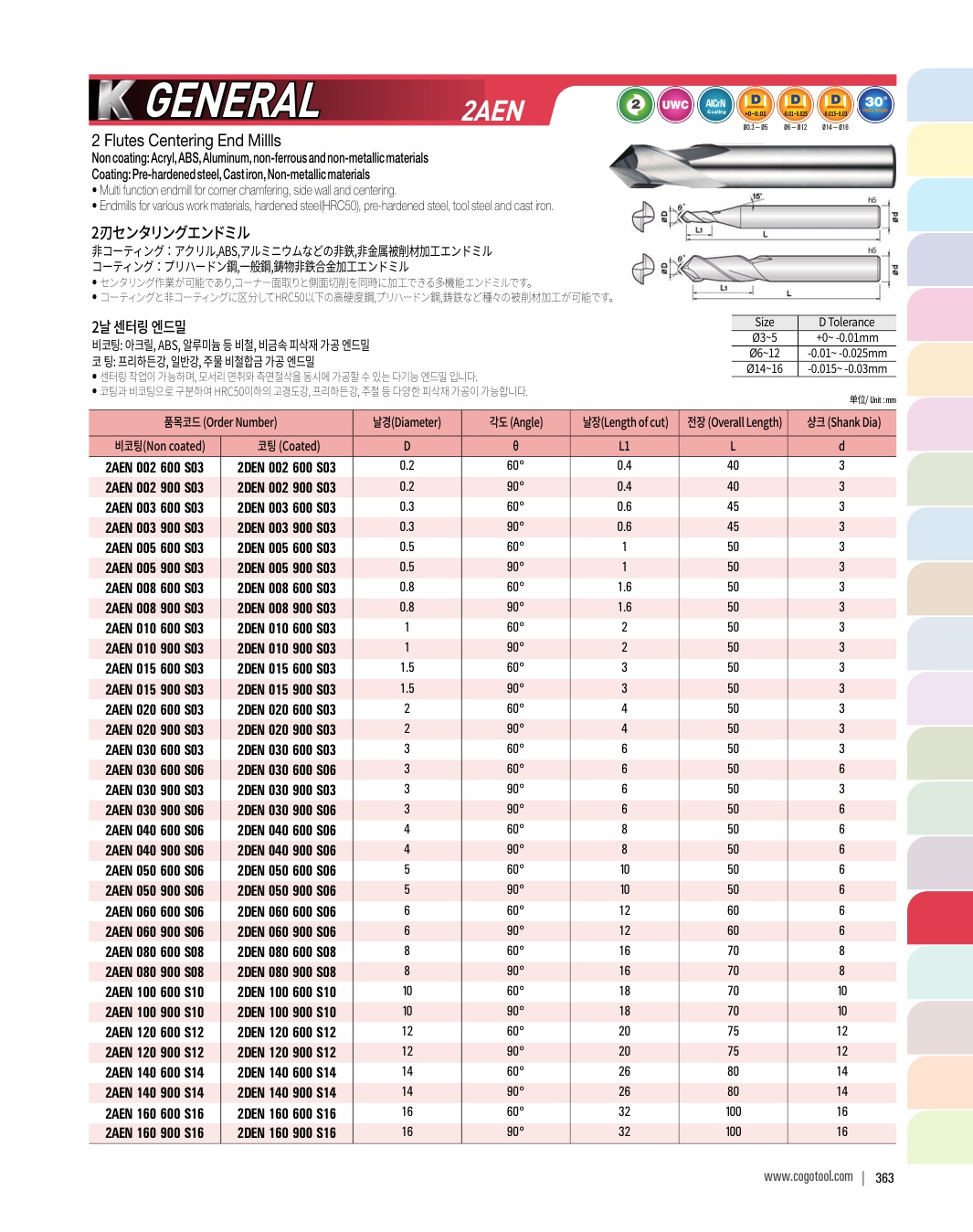

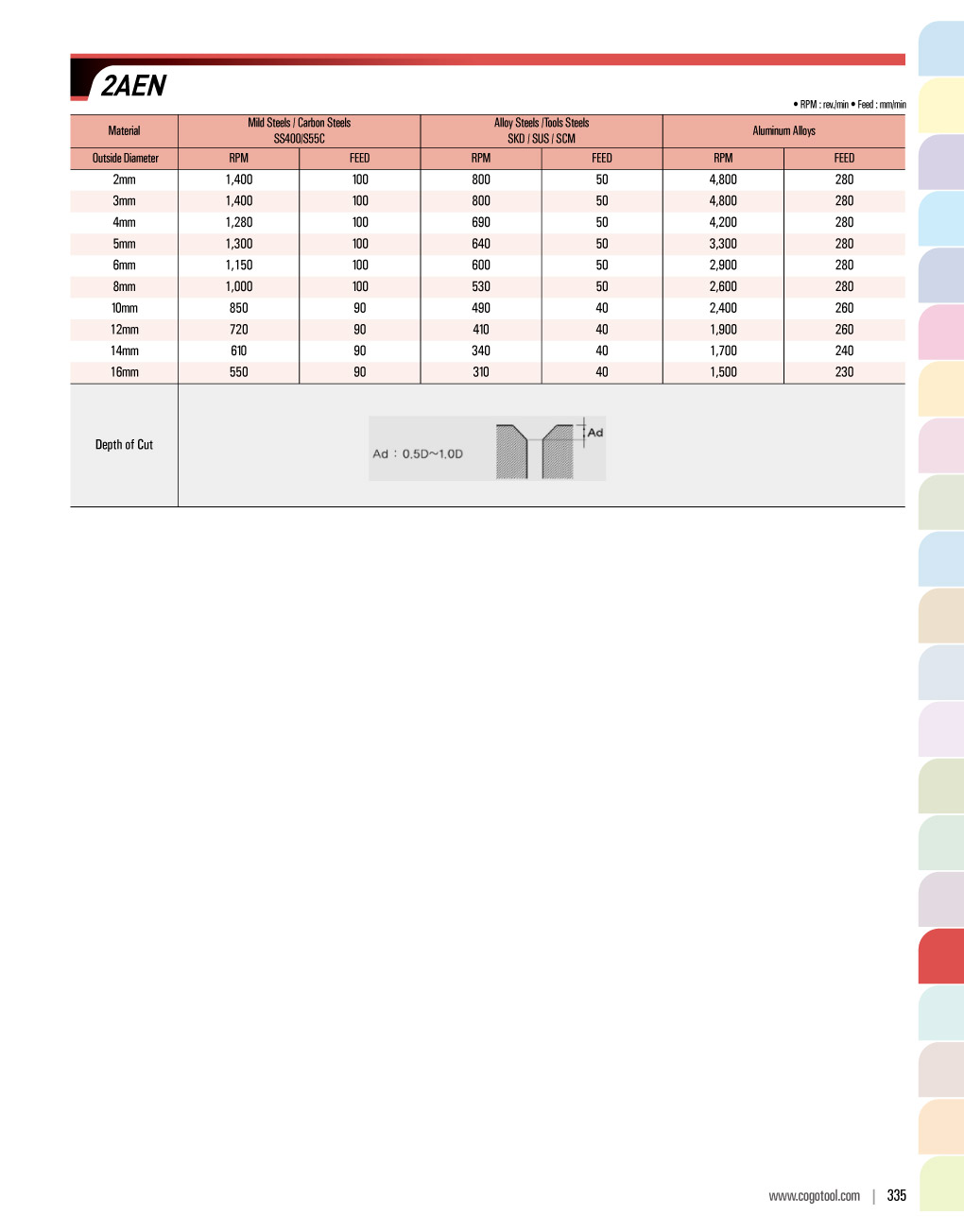

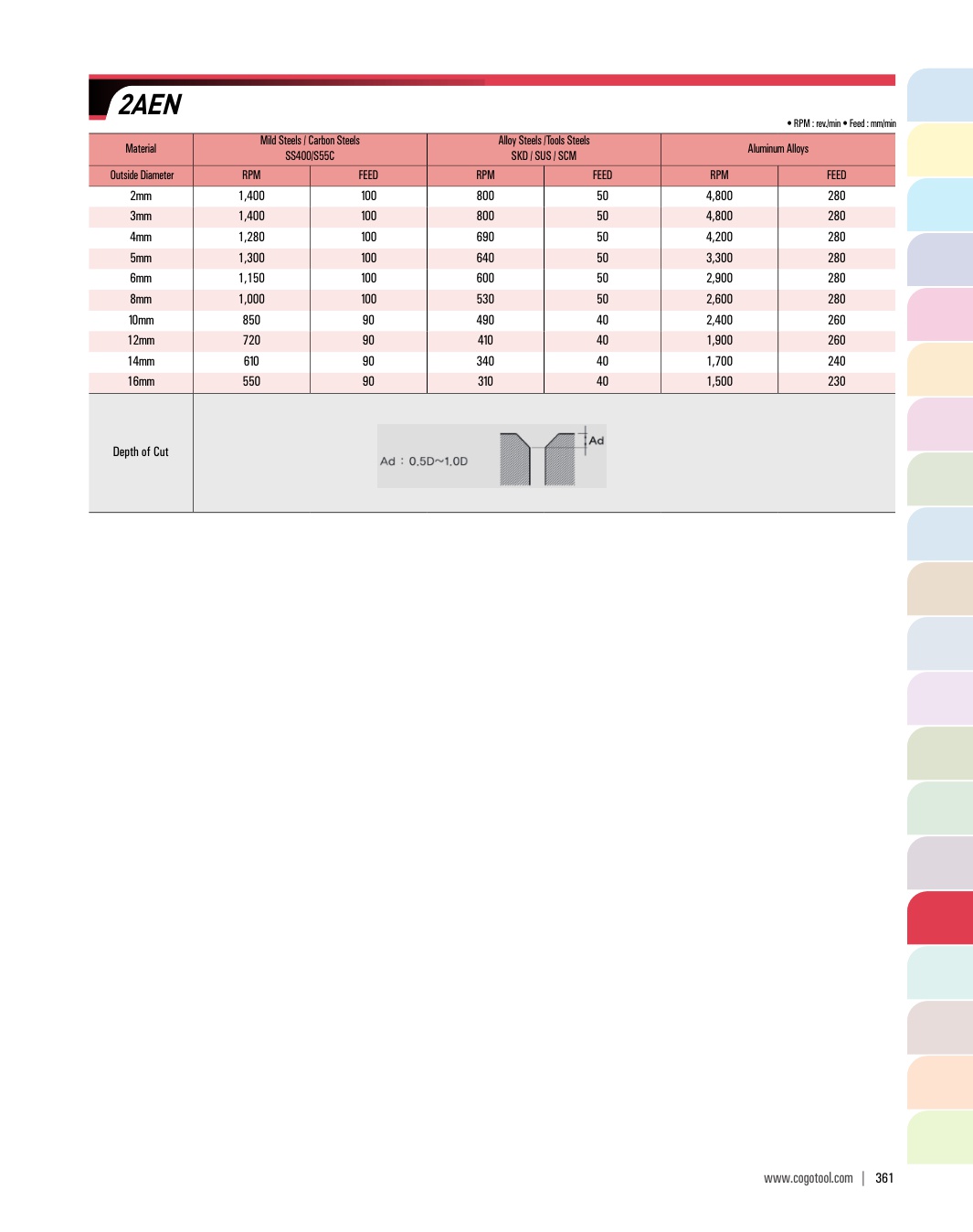

2AEN
Centering Endmills
Aluminum, Copper, Plastic
2 Flutes Centering End Millls
- - Non coating: Acryl, ABS, Aluminum, non-ferrous and non-metallic materials Coating: Pre-hardened steel, Cast iron, Non-metallic materials
- - Multi function endmill for corner chamfering, side wall and centering.
- - Endmills for various work materials, hardened steel(HRC50), pre-hardened steel, tool steel and cast iron.
2NPO
NC spotting drill
Aluminum, Copper, Plastic
2Flutes NC spotting drill
- - Endmills for various work materials, hardened steel, pre-hardened steel, tool steel and cast iron.
- - Optimum for centering with helix 2flutes.
- - Resin, plastic machining applicable with coated or non coated endmill.

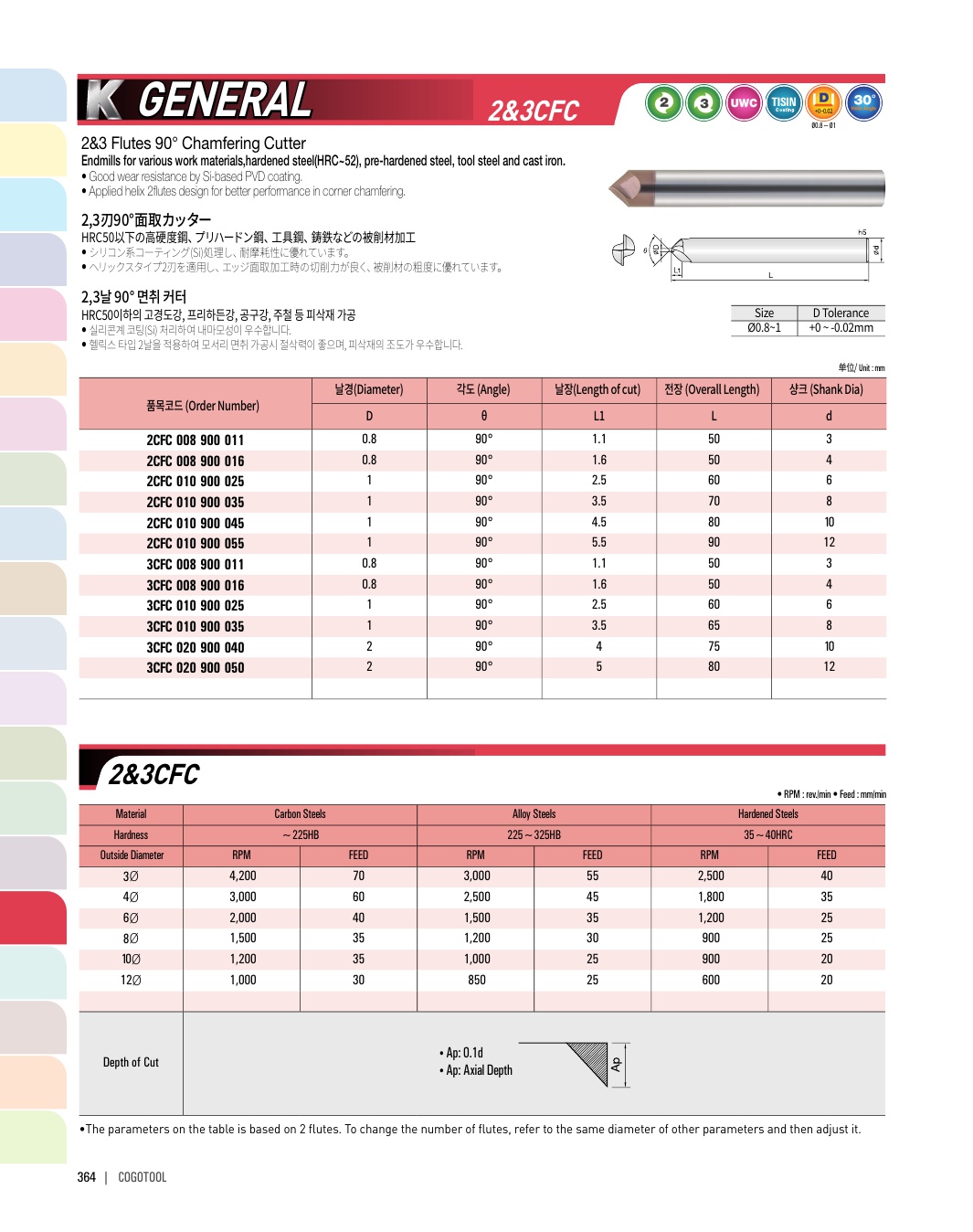

2&3CFC
90° Chamfering Cutter
Prehardened Steels, Heat treated steel, SUS, Stainless, Titanum, Copper
2&3 Flutes 90° Chamfering Cutter
- - Endmills for various work materials,hardened steel(HRC~52), pre-hardened steel, tool steel and cast iron.
- - Good wear resistance by Si-based PVD coating.
- - Applied helix 2flutes design for better performance in corner chamfering.

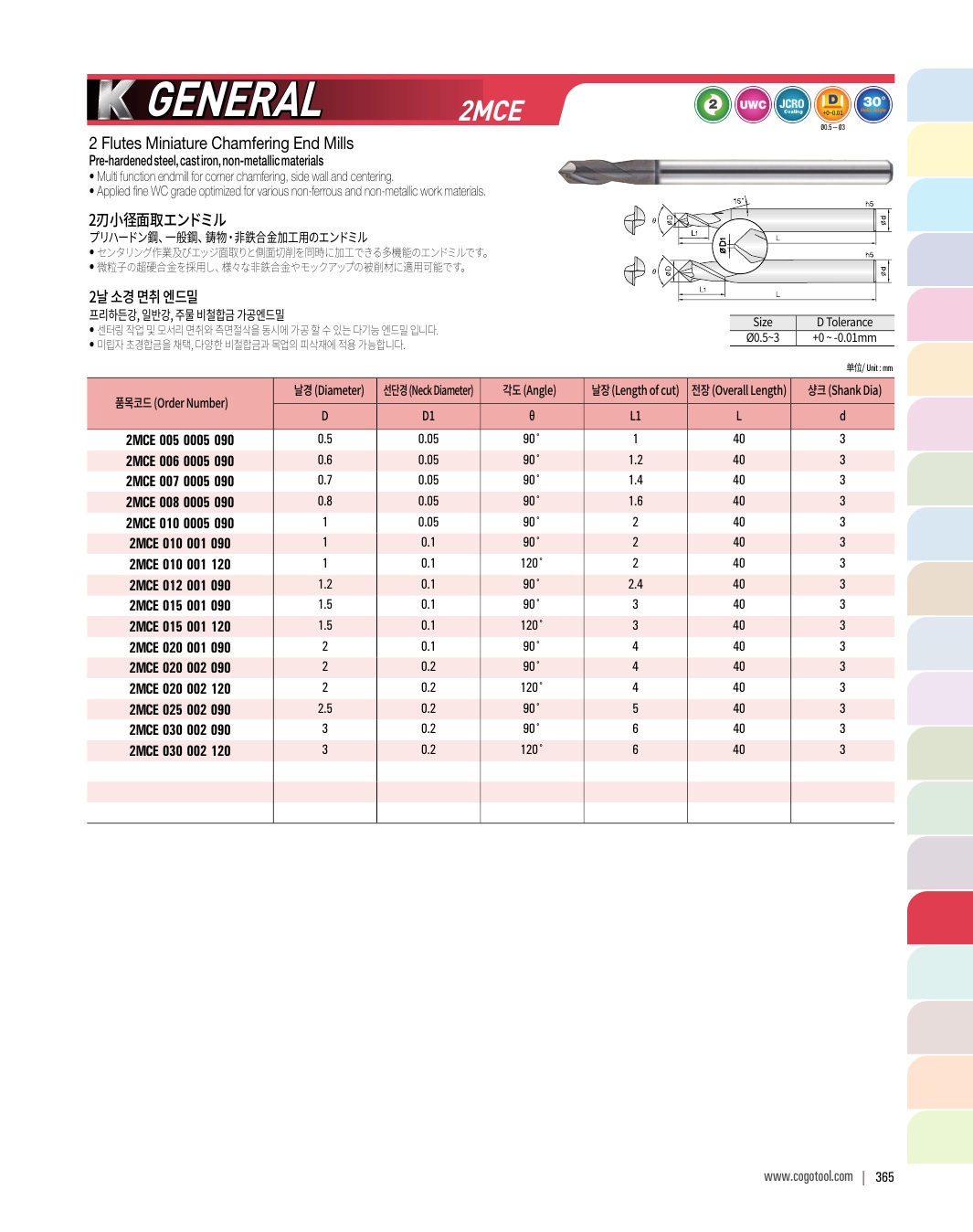

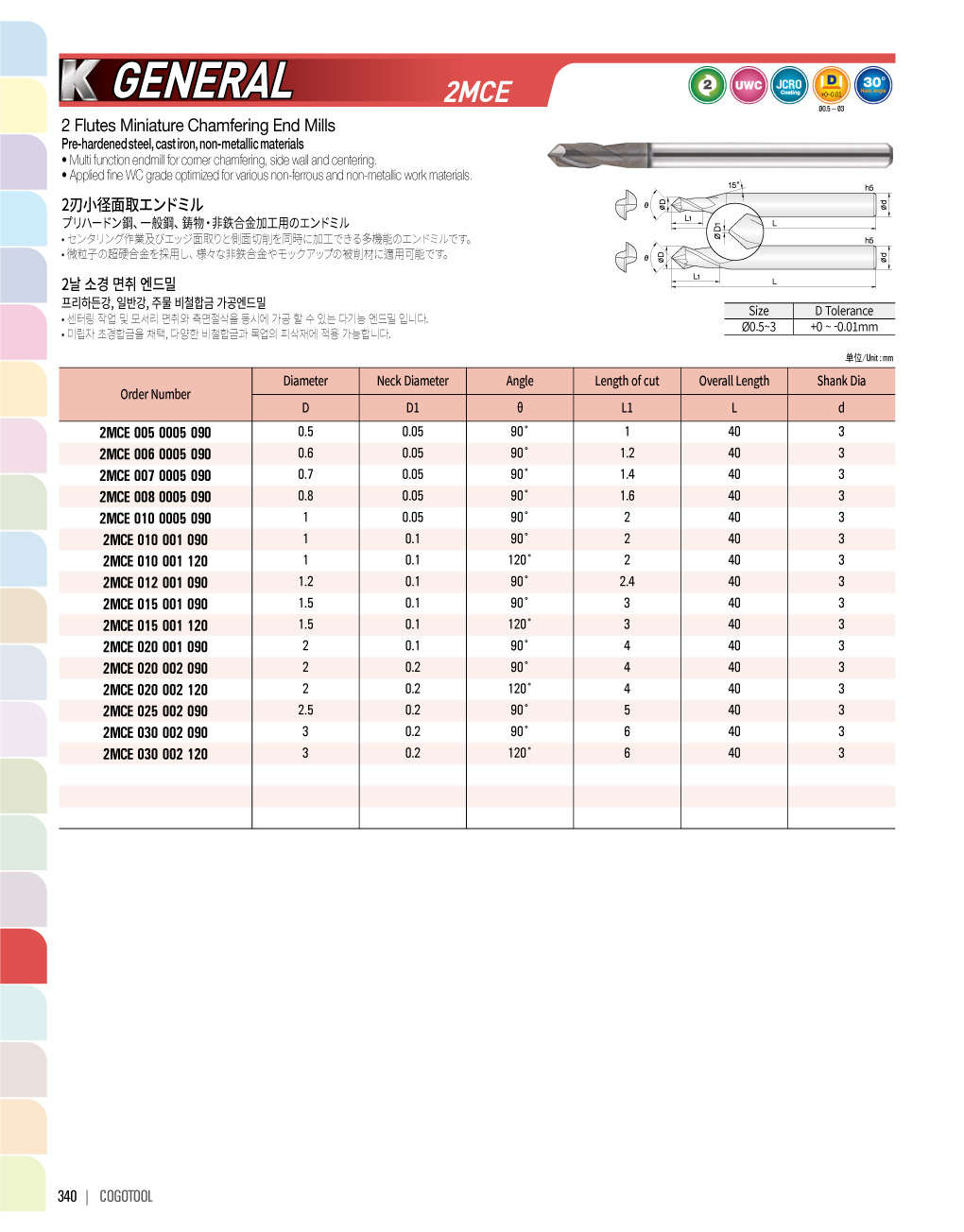

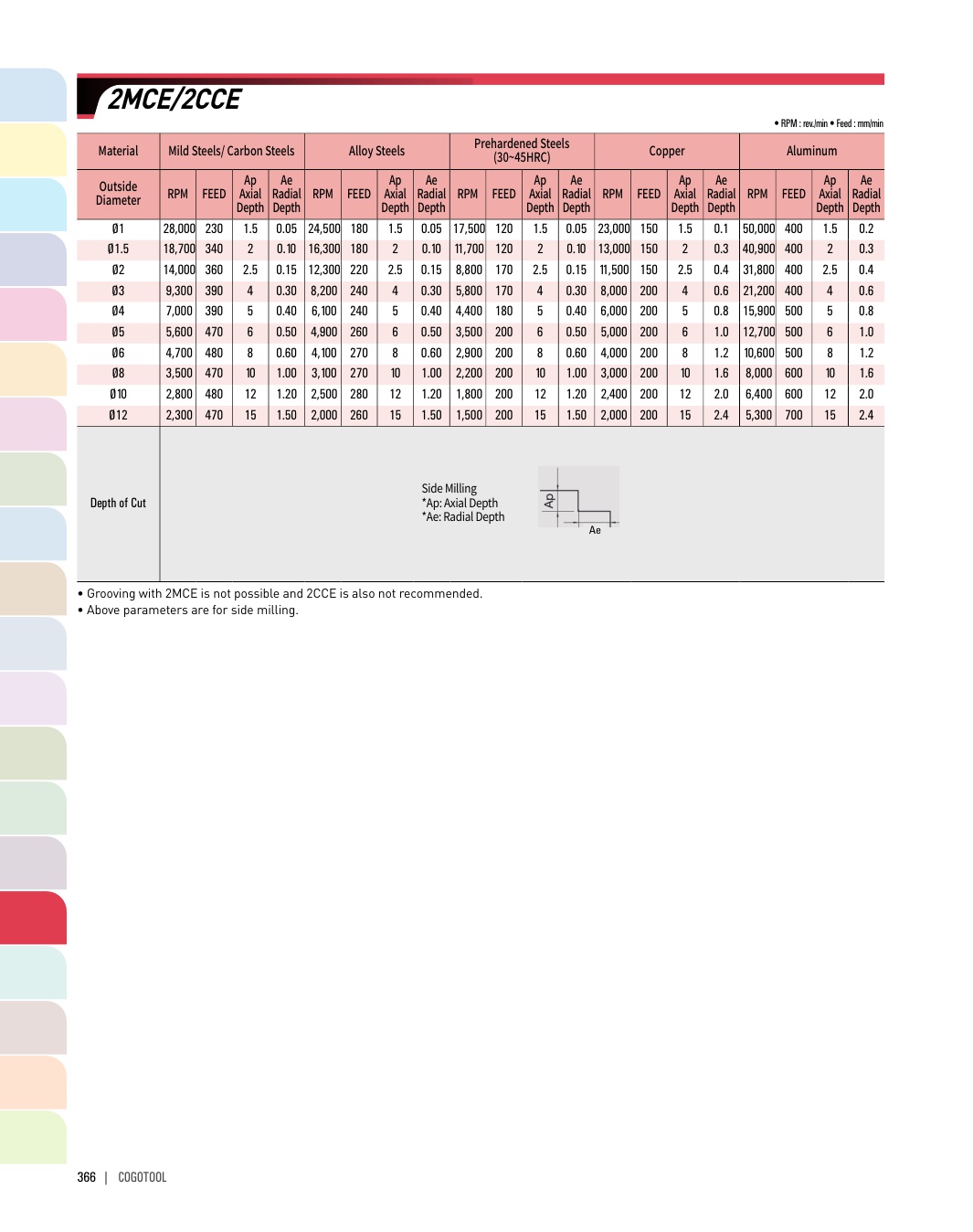

2MCE
Miniature Chamfering Endmills
Prehardened Steels, SUS, Stainless, Copper
2 Flutes Miniature Chamfering End Mills
- - Pre-hardened steel, cast iron, non-metallic materials
- - Multi function endmill for corner chamfering, side wall and centering.
- - Applied fine WC grade optimized for various non-ferrous and non-metallic work materials.

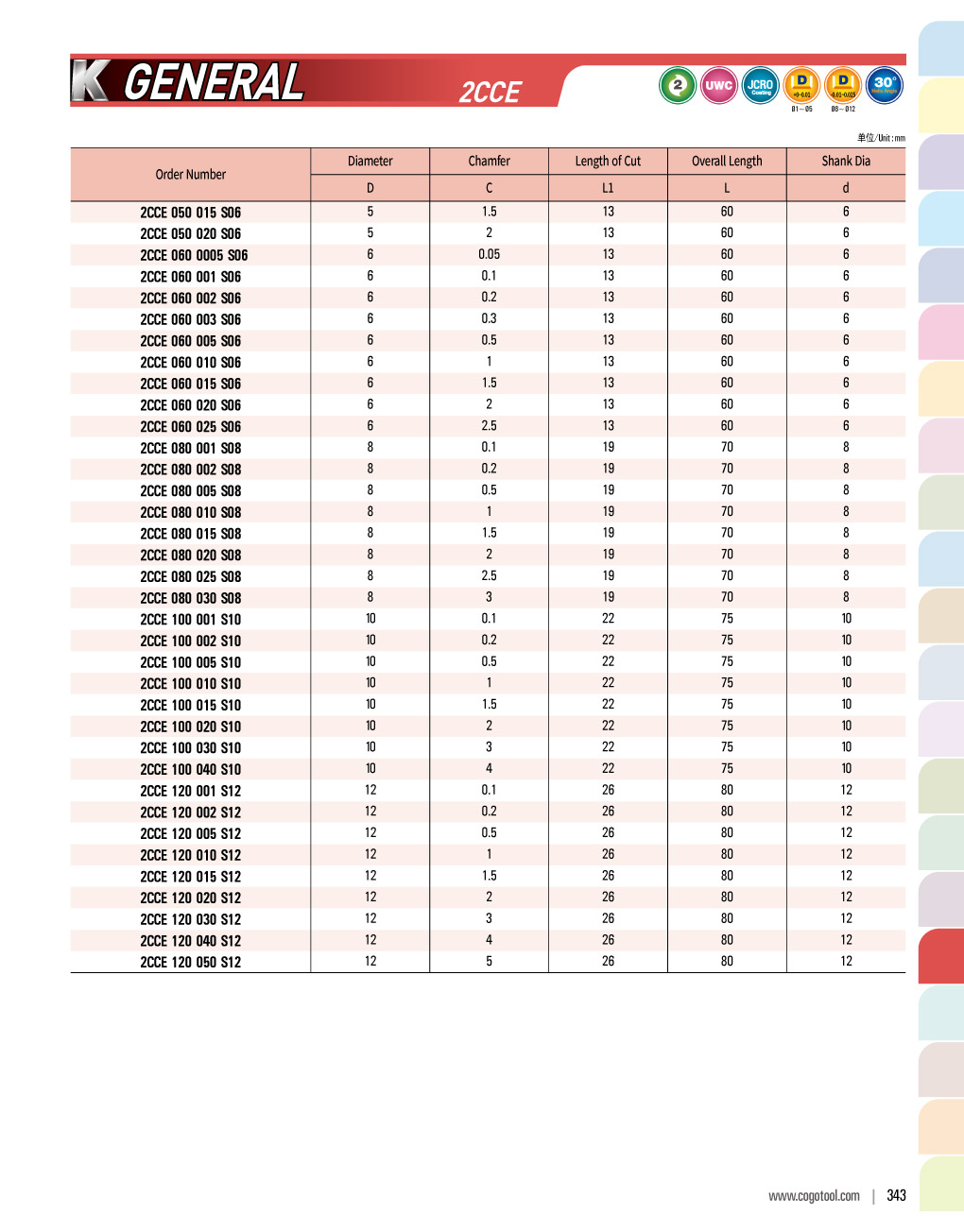

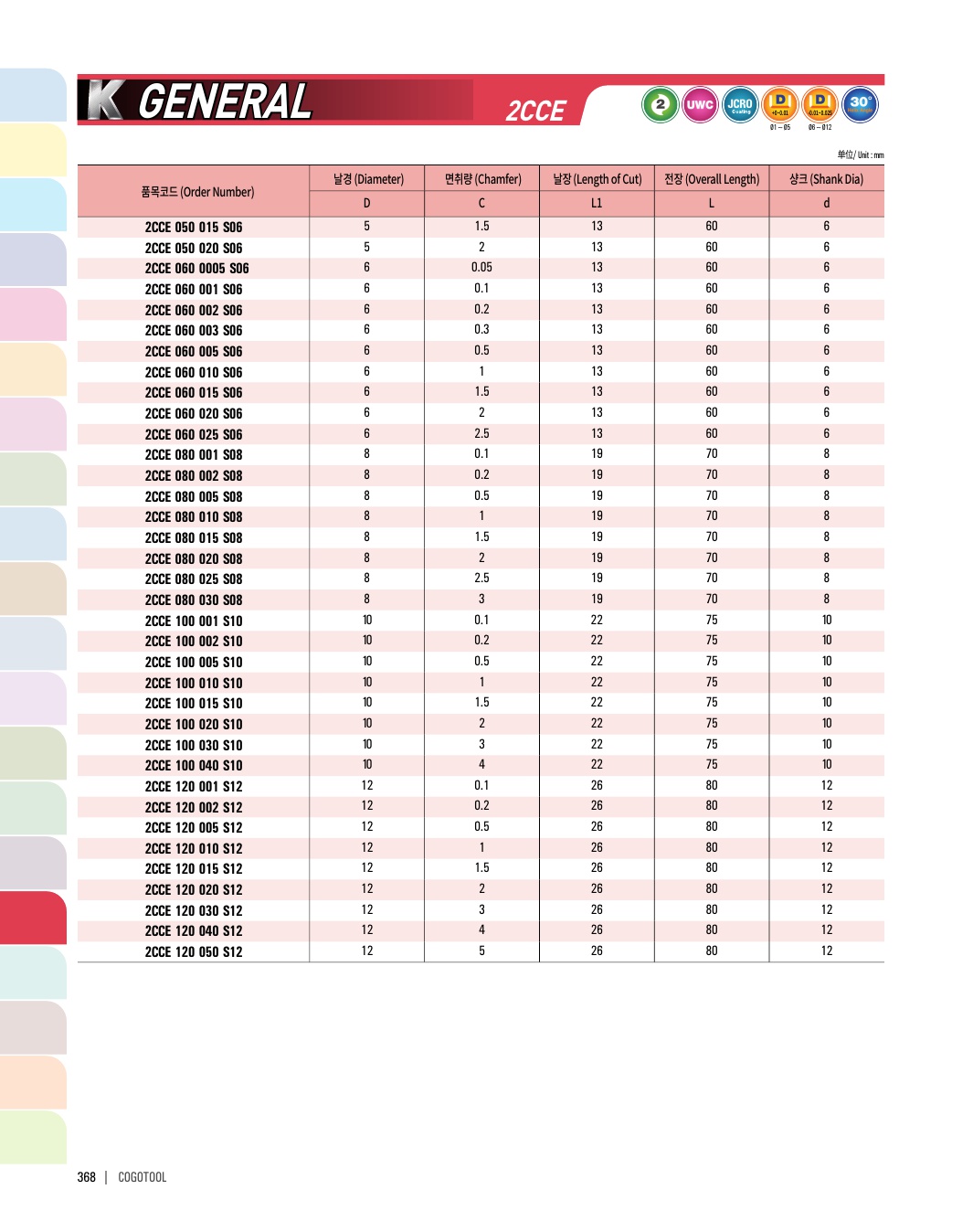

2CCE
Corner C Endmills
Prehardened Steels, Heat treated steel, SUS, Stainless, Copper
2 Flutes Corner C End Mills
- - Pre-hardened steel, cast iron, non-metallic materials
- - Multi function endmill for corner chamfering, side wall.
- - Minimize edge chipping by applying edge chamfering design.

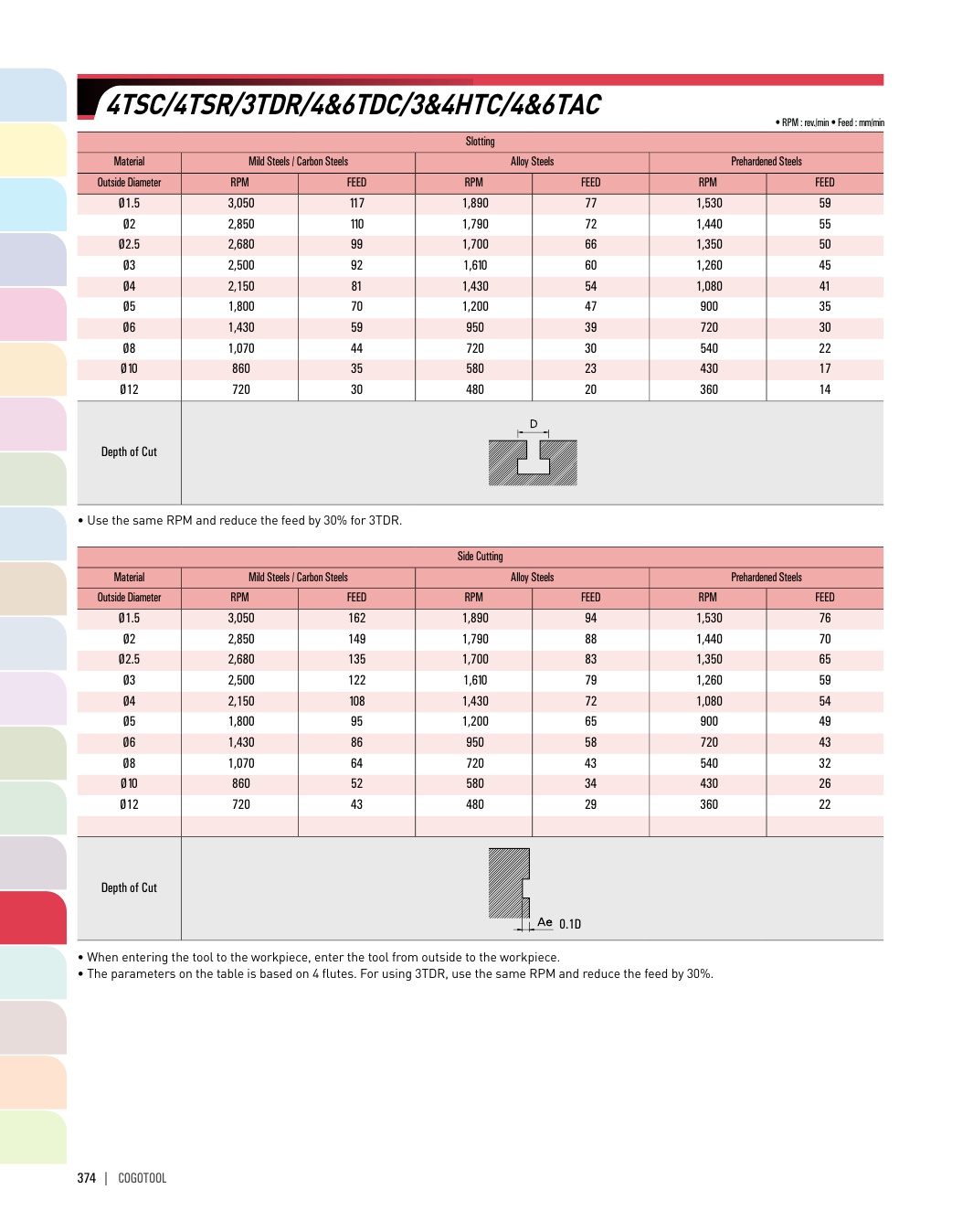

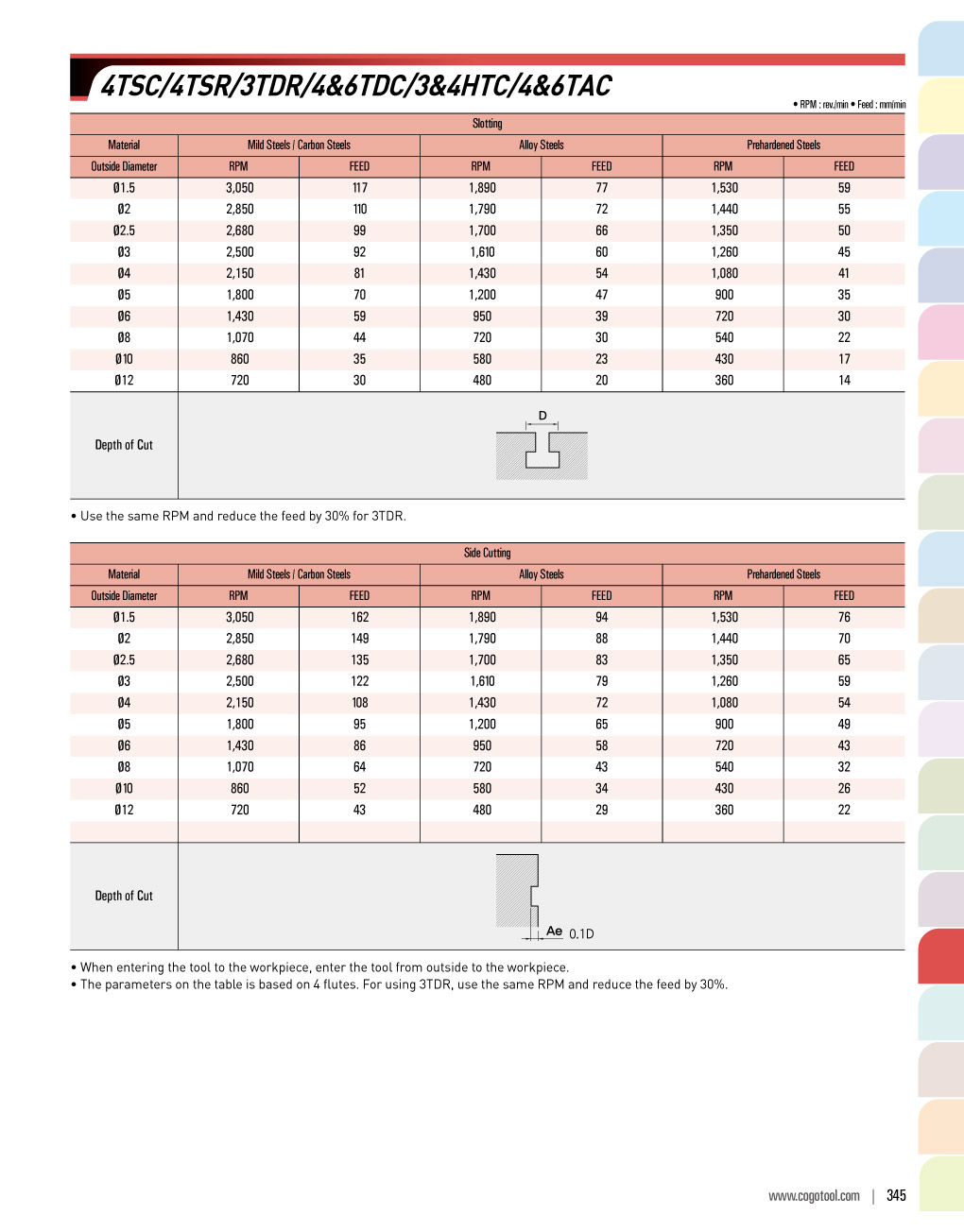

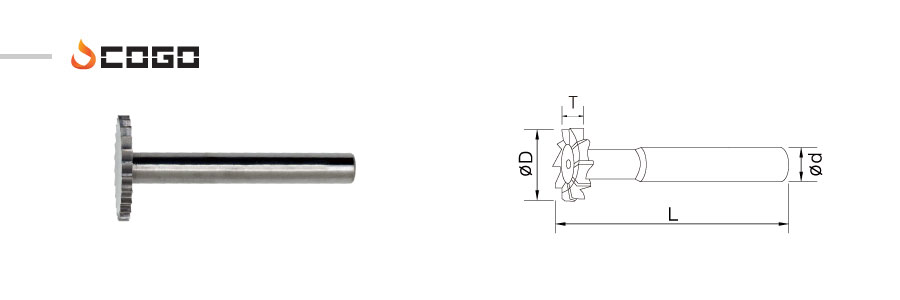

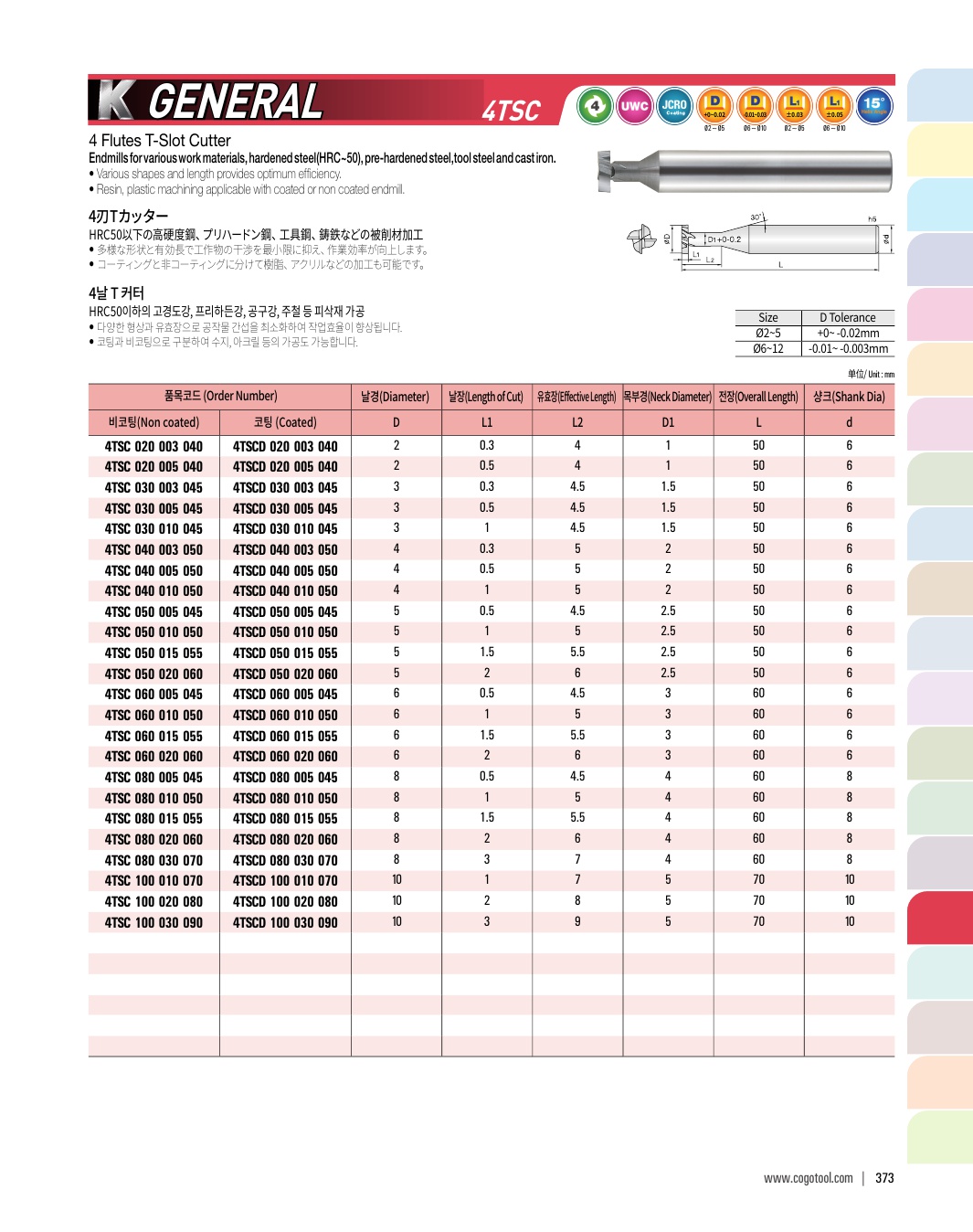

4TSC
T Slot Cutter
Carbon Steel, Prehardened Steels, Heat treated steel, SUS, Stainless, Copper, Graphite
4 Flutes T-Slot Cutter
- - Endmills for various work materials, hardened steel(HRC~50), pre-hardened steel,tool steel and cast iron.
- - Various shapes and length provides optimum efficiency.
- - Resin, plastic machining applicable with coated or non coated endmill.

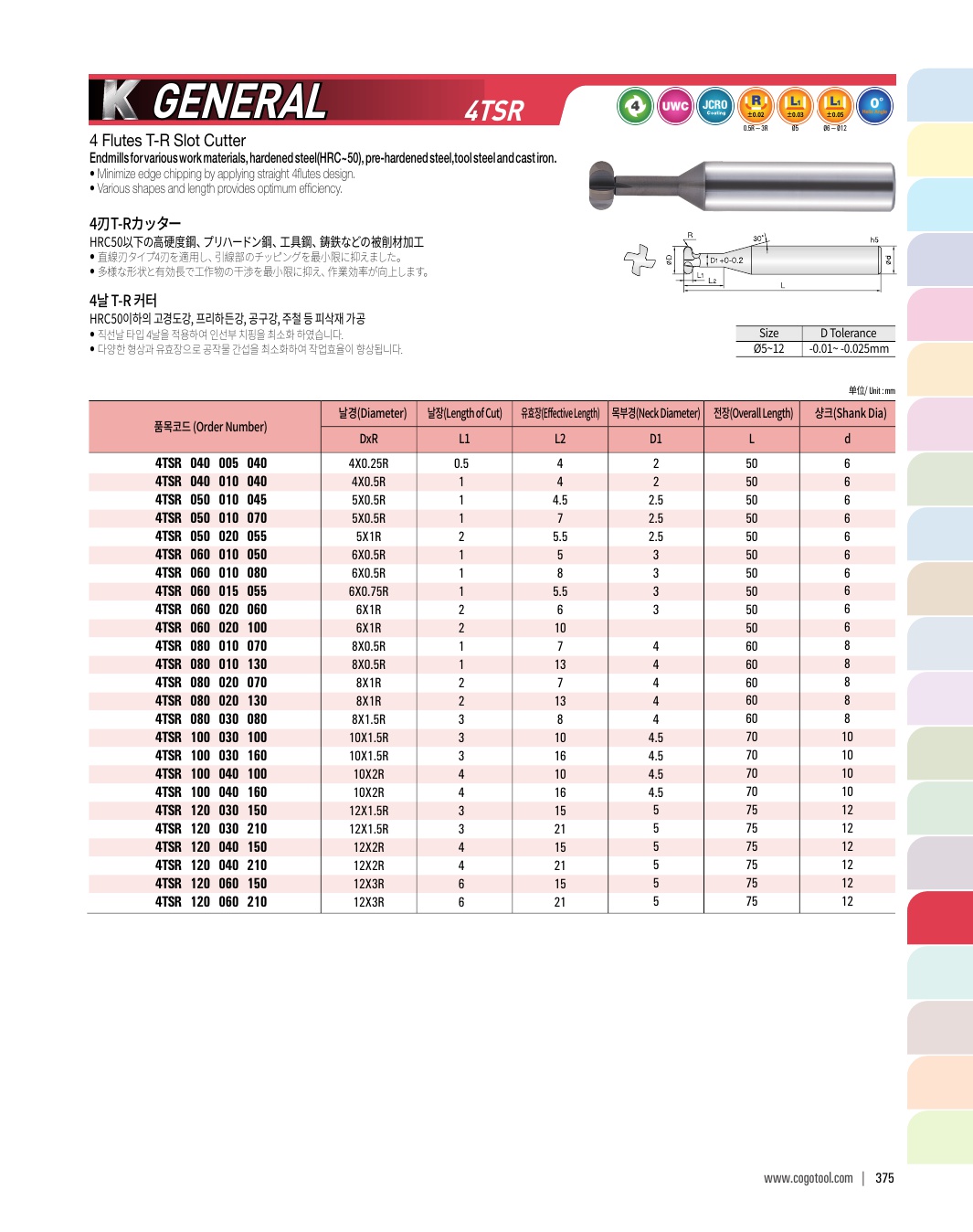

4TSR
T-R Slot Cutter
Carbon Steel, Prehardened Steels, Heat treated steel, SUS, Stainless, Copper, Graphite
4 Flutes T-R Slot Cutter
- - Endmills for various work materials, hardened steel(HRC~50), pre-hardened steel,tool steel and cast iron.
- - Minimize edge chipping by applying straight 4flutes design.
- - Various shapes and length provides optimum efficiency.

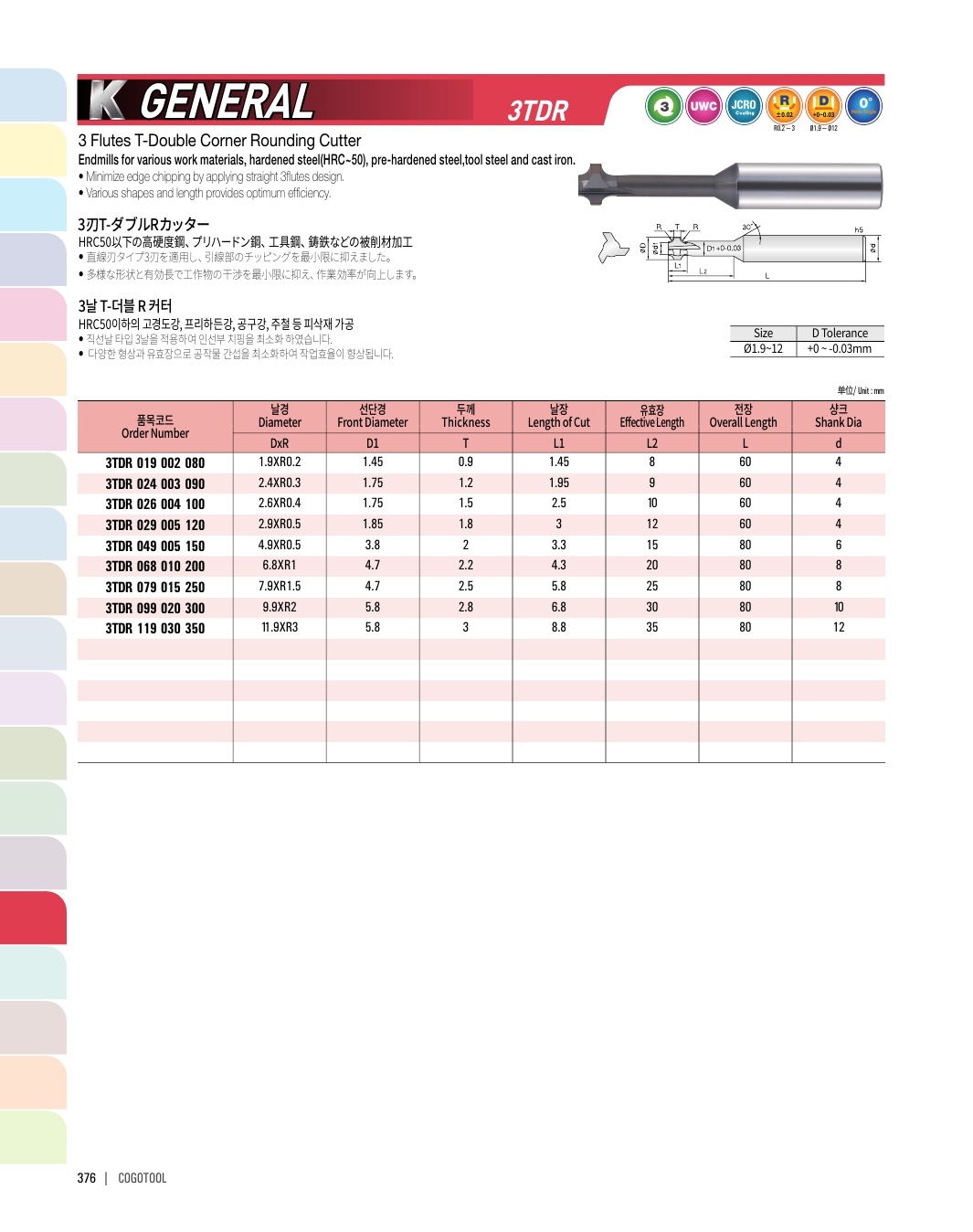

3TDR
T Double Corner Rounding Cutter
Carbon Steel, Prehardened Steels, Heat treated steel, SUS, Stainless, Copper, Graphite
3 Flutes T- Double Corner Rounding Cutter
- - Endmills for various work materials, hardened steel(HRC~50), pre-hardened steel,tool steel and cast iron.
- - Minimize edge chipping by applying straight 3flutes design.
- - Various shapes and length provides optimum efficiency.
4&6TDC
T Double Angular Cutter
Carbon Steel, Prehardened Steels, Heat treated steel, SUS, Stainless, Copper, Graphite
4&6 Flutes T-Double Angular Cutter
- - Endmills for various work materials, hardened steel(HRC~50), pre-hardened steel,tool steel and cast iron.
- - Minimize edge chipping by applying straight 4flutes design.
- - Various shapes and length provides optimum efficiency.
2HOB
- - 최적의 공구강성과 최적의 칩배출을 고려한 FLUTE 설계
- - New design으로 별도의 centering과 reaming 작업이 필요없이 고정밀 작업이 가능
- - 인성과 내마모성이 우수한 초미립자 고급재질을 사용하여 공구의 수명을 향상하여 무인작업이 가능
3&4HTC
Thread Milling Cutter
Carbon Steel, Prehardened Steels, Heat treated steel, SUS, Stainless, Copper, Graphite
3&4 Flutes Thread Milling Cutter
- - Endmills for various work materials, hardened steel(HRC~50), pre-hardened steel,tool steel and cast iron.
- - Minimize edge chipping and fracturing by applying straight flutes design which is appropriate to screw groove cutting.
- - Various shapes and length provides optimum efficiency.
2HOB
- - 최적의 공구강성과 최적의 칩배출을 고려한 FLUTE 설계
- - New design으로 별도의 centering과 reaming 작업이 필요없이 고정밀 작업이 가능
- - 인성과 내마모성이 우수한 초미립자 고급재질을 사용하여 공구의 수명을 향상하여 무인작업이 가능

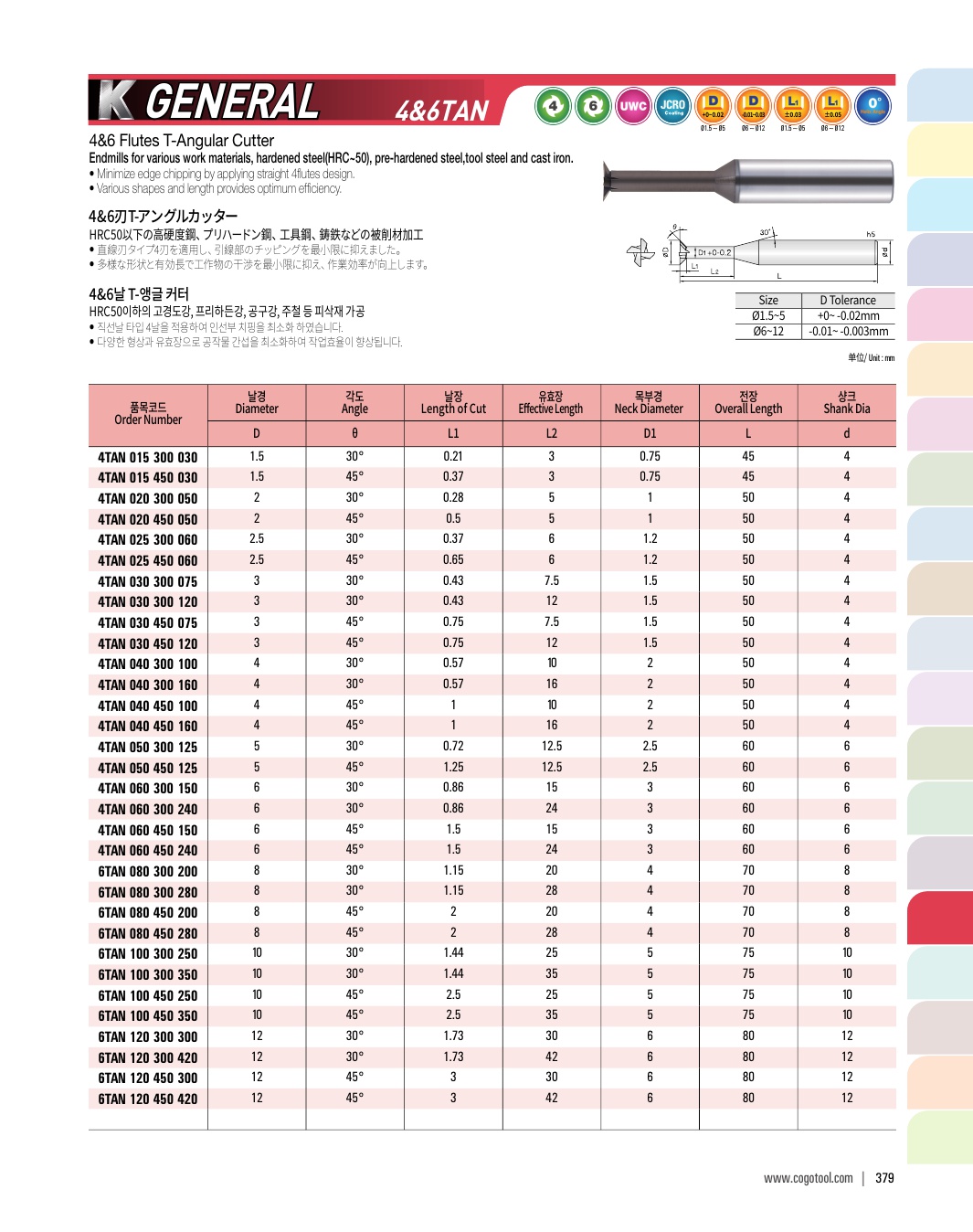

4&6TAN
T Angular Cutter
Carbon Steel, Prehardened Steels, Heat treated steel, SUS, Stainless, Copper, Graphite
4&6 Flutes T-Angular Cutter
- - Endmills for various work materials, hardened steel(HRC~50), pre-hardened steel,tool steel and cast iron.
- - Minimize edge chipping by applying straight 4flutes design.
- - Various shapes and length provides optimum efficiency.
2HOB
- - 최적의 공구강성과 최적의 칩배출을 고려한 FLUTE 설계
- - New design으로 별도의 centering과 reaming 작업이 필요없이 고정밀 작업이 가능
- - 인성과 내마모성이 우수한 초미립자 고급재질을 사용하여 공구의 수명을 향상하여 무인작업이 가능
4&6TAC
- - FLUTE design considering optimal tool rigidity and optimal chip evacuation
- - New design enables high-precision work without the need for separate centering and reaming work.
- - Using high-quality ultra-fine grain materials with excellent toughness and wear resistance, tool life is improved and unmanned work is possible.
2HOB
- - 최적의 공구강성과 최적의 칩배출을 고려한 FLUTE 설계
- - New design으로 별도의 centering과 reaming 작업이 필요없이 고정밀 작업이 가능
- - 인성과 내마모성이 우수한 초미립자 고급재질을 사용하여 공구의 수명을 향상하여 무인작업이 가능
